Shielded, high-voltage output cable permanently connected to the instrument
Redundant grounding connections
Easy-to-follow, color-coded meter scales
Continuously variable test voltage
Rugged field construction

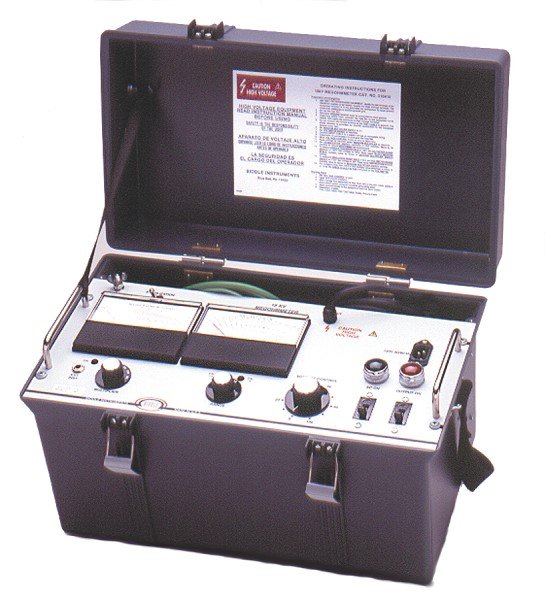

The 5- and 15-kV Megohm-meters are high-voltage, line-operated instruments. They provide a continuously variable test voltage for highly sensitive insulation-resistance measurements of all types of electrical equipment and power cable.
The instruments are designed to withstand harsh field conditions, and feature tough, impact-resistance casing, removable lids and adjustable carrying straps. For complete portability, there is ample room in each case to store cables and the instruction manual.
(1) 4702 Ground Connection, 10 ft
(1) 210954 Test record card, (universal)
(1) 17032 Power Cord
(1) AVTM22-40JA Instruction Manual for 5 kV model only
(1) AVTM21-415JA Instruction Manual for 15 kV model only
