Measures capacitance of test point if system voltage is known
Checks phase rotation of cables
Phases out cables
Rugged; comes with portable case
Battery operated

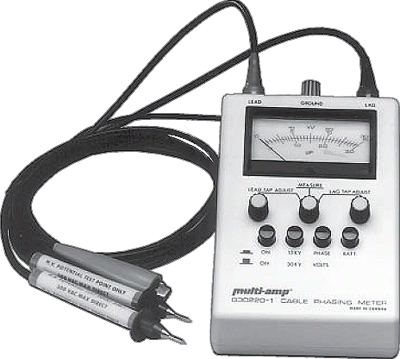

Operates from potential test point of elbow connectors The Model 830220-1 Cable Phase Rotation Meter offers a safe and quick method of measuring voltage and determining phase rotation of underground distribution systems using the capacitance test point of elbow connectors. Most manufacturers of high-voltage cable terminators incorporate capacitance test points into their elbow connectors. These test points are designed for measuring purposes.
The Cable Phasing Meter is an instrument designed to measure voltage, determine phase potation and phase out cables when connected to the capacitive test points. This instrument is battery operated and is supplied with aground and two measuring leads.
Included Accessories
1 - Lead set - including two potential leads with probes and one ground lead, 78in.(2m)
