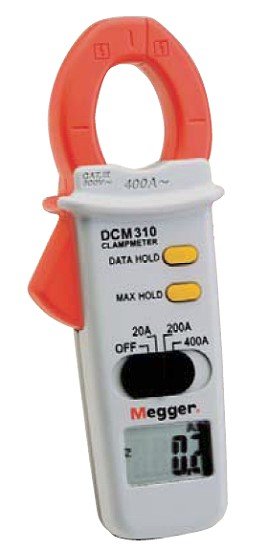

Megger DCM310 400A AC Digital Clamp Meter

Category: Megger
  • Current only and multimeter models
  • Measures up to 400 A AC with low current ranges for improved resolution
  • Data Hold
  • Max Hold
  • Small pocket-size design
  • Exceptional battery lifetime
  • Supplied with carry case
  • IEC61010 CAT III 600 V

    The DCM310 and DCM320 are ideal clamp meters for use during the installation, maintenance and checking of electrical systems and equipment. Both meters will measure AC current (50~60 Hz) up to 400 A, with a Data-hold feature to freeze the displayed value for use in confined situations where the display may be difficult to read. The DCM310 also has a max-hold feature to automatically store and display the maximum value measured over a period of time.

    The DCM320 has the benefit of measurement ranges for AC and DC voltages up to 600 V, and resistance up to 20 MΩ, via the terminals and supplied test leads. It also has a continuity buzzer that operates up to 20 Ω. Both meters are safety rated to IEC 61010 CAT III 600 V, so offering high levels of protection to the operator. Carrying cases are included, and even without the case, the instruments are rated to withstand a 1.2 m-drop onto a hard surface without damage. The large clamp jaw enables cables to be measured up to 27 mm diameter, so covering the majority of applications within the electrical system installation industry.

    The Megger DCM310 is ideal for use by anyone working on basic electrical systems or equipment, these instruments are also suitable for the majority of applications encountered by the Electrical Contractor.
