Megger DLRO-10X Ducter Digital Low Resistance Ohmmeter

Category: Megger
  • Accurate results in under three seconds
  • 4 1/2 Digit seven segment LED
  • Auto current reversal cancels standing emfs
  • 250 mW power limit (with optional override) to avoid heating the test sample
  • Automatically detects continuity in potential and current connections
  • Visible warnings of high voltages present at the terminals
  • Visible warning of current flowing in the test sample
  • Multiple operating modes including fully automatic
  • Alpha-numeric keypad for entering test notes
  • Stores up to 700 tests
  • User settable high and low limits
  • Autoranging with Manual option
  • Printer output and memory
  • For the basic unit, see: Megger DLRO-10

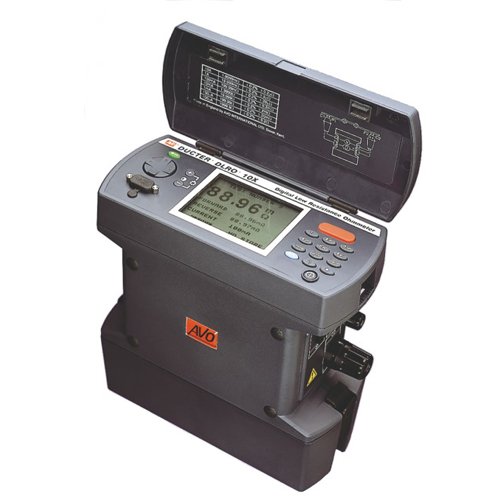

    The MEGGER DUCTER DLRO-10X brings new standards to low resistance measurement. It's fully automatic instruments, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. For users who desire more control over the measurement process, DLRO 10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. It's also adds real-time download of results and on-board storage for later download to a PC.

    The Megger DLRO-10X Ducter Digital Low Resistance Ohmmeter is built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. DLRO 10X has a large, backlit LCD display. Normally, measurements are made with forward and reverse currents to cancel the effects of any standing voltages across the test sample.

    The average value is then displayed within 3 seconds, to a basic accuracy of 0.2%. DLRO 10X displays both forward and reverse measurements as well as the average of the two.

    DLRO 10X allows the user to set high and low pass limits, thereby enabling simple go-no-go testing.

    At the end of a test Megger DLRO-10 Ducter Digital Low Resistance Ohmmeter will store the test results, as well as any notes relevant to the test.

    The instrument is supplied as standard with a Nickel Metal Hydride (NiMH) battery pack. The battery packs are inter- changeable so that an exhausted battery may be recharged using the external charger supplied while testing continues using a spare pack. Although full charging will take 4 hours, a fast charge mode allows the battery to be 90% charged within 2 1/2 hours from a 12 volt battery or from a standard 120/230 V AC supply via the supplied charger. The battery pack contains its own battery state indicator, which allows the charge-state to be monitored, even without being connected to the instrument.

    To assist operator safety and ease of use, both instruments are supplied complete with a pair of duplex handspikes with 1.2 m (4 ft) leads. One of the probes is fitted with LED’s, which duplicate indicators on the instrument display indicating that all four contacts have been made, the presence of a high voltage across the load, and the presence of current flow while a load is discharging. A full range of test leads is available with probes, clamps and Kelvin clips.

    Megger DLRO-10 Ducter Digital Low Resistance Ohmmeter is fitted with RS232 communications that will allow results to be downloaded in real time or stored for later retrieval.

    Up to 700 sets of results may be stored within DLRO 10X complete with notes containing up to 200 characters which may be added using the on board keypad. These results can also be downloaded to a PC.

    Applications

    The needs for accurate low resistance measurement are well known and very diverse. They range through Goods Receiving inspection of components to ground bonding and welded joints. Typical applications include, but are not limited to, making d.c. resistance measurements of:

    • Switch and contact breaker resistancen Busbar and cable joints
    • Aircraft frame bonds and static control circuits
    • Integrity of welded jointsn Inter-cell connections on battery systems up to 600 V peak
    • Quality control of resistive components
    • Transformer and motor winding resistancen Rail and pipe bonds
    • Metal alloys, welds and fuse resistance
    • Graphite electrodes and other composites
    Specifications
    Mode Manual, Auto, Continuous, Inductive,Undirectional
    Control Fully Automatic/Manual
    Speed <3s for forward & reverse current and to display average
    Display 4 1/2 digit seven segment LED
    Test Method Single cycle reversing d.c. ratiometric measurement -average result display
    Test Current: Accuracy ±10%
    Stability <10 ppm per second
    Maximum Lead Resistance 100 mΩ total for 10 A operation irrespective of battery condition.
    Voltmeter input impedance > 200 kΩ
    Hum rejection Less than 1% ±20 digits additional error with 100 mV peak 50/60 Hz. on the potential leads. Warning will show if hum or noise exceeds this level.
    Battery: Capacity 7 Ah NiMH rechargeable
    Life Typically 1000 x 10 A tests before recharge
    Recharge Via external 90 V - 260 V 50/60 Hz charger or from 12 to 15 V dc supply
    Charging Rate 2.5 hours to 90% capacity, 4 hrs for full charge
    Humidity (max) +10 ºC to +45 ºC (50 ºF to 113 ºF)
    Altitude (max) 90% RH @ 40 ºC (104 ºF) non-condensing
    Safety: 2000 m (6562 ft) to full safety specifications
    EMC In accordance with IEC61010-1 600 V Category III - only when DH6 leads are used.
    In accordance with IEC61326-1
