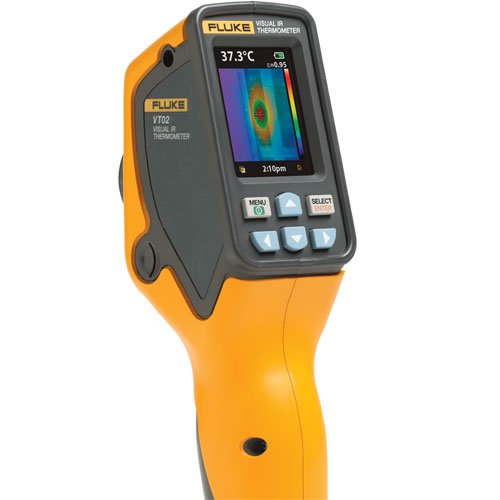

Fluke VT02 Visual Infrared (IR) Thermometer 10°C to +250°C (14°F to 482°F) Temp. Range, 2°C Accuracy

The Fluke VT02 Visual IR Thermometer combines the convenience of a spot thermometer with the visual advantage of a thermal imager creating a brand new tool category – a troubleshooting camera with an infrared heat map. Compact and intuitive, the Fluke VT-02 IR Thermometer's point & shoot focus free design starts finding problems right out of the box with little to no training required

Traditional infrared thermometers may seem affordable and convenient, but they only show an average temperature of an area and the farther away, the less accurate. Because traditional infrared thermometers only measure an average area, it is often impossible to accurately identify what you are actually measuring; with the Fluke VT 02 Visual Thermometer you get the visual image of exactly what you are measuring.


Key Applications for the Fluke VT02
Electrical Detect heating of fuses, wires, insulators, connectors, splices, switches
Check temps of high-voltage equipment and transformers from a safe distance
Overloaded motors due to possible harmonic currents
HVAC Check temp of furnace exteriors, stream traps, heat exchangers
Take suction line temps for superheat
Outlet/inlet air
Refrigeration equipment, freezers, AC condenser temps to look for blockages
Chiller input/output
Industrial Rotating motors and other machinery
Motor starter relay contacts and overloads
Bearings
Boiler operations and steam systems
Performance verifications
Automotive Check Engine, Brakes and Heating/Cooling systems
Performance verification
Wiring
Bearings
Exhaust system
Hydraulics


Using hyper-thin pyroelectric technology, Fluke discovered a way to push the limits of this technology pioneering an array dense enough to create an infrared heat map. The VT02 Visual IR Thermometer clearly identifies the hot or cold source within the context of your application. The Fluke VT/02 Visual IR Thermometer is the missing link– the ultimate in-between tool for those times when a single spot temperature reading isn't enough and a high-resolution thermal image is more than you need, or can afford. Additionally, the Fluke VT02 Visual IR Thermometer saves a blended infrared and visual image with every image capture instantly! In one blended picture you can get the complete picture on the Fluke VT/02 Infrared Thermometer and can compare readings from different dates which saves them valuable time and ultimately money.


Specifications
Hot and cold
spot markers
Available in visual, infrared and blended views
Temperature
measurement range
-10°C to +250°C (14°F to 482°F)
Accuracy ± 2°C or 2% (at 25 °C nominal, whichever is greater), as tested
Thermal and visual
image Blending
0 to 100% blend, shown in 25% increments
Field of view 20° x 20°
Focus System Focus Free
Storage Medium Up to 10,000 images stored on micro-SD card, easy download to PC and import into software
Power Source 4 standard AA cell batteries
Battery Life for 8 hours of continuous battery life
