Card-style Pocket DMM for General Electrical Maintenance and Testing

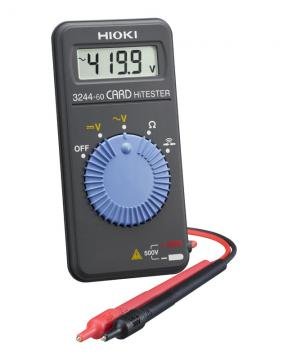

The 3244-60 is a card-style digital multimeter for general electrical maintenance and testing, and includes gold-plated test leads for better contact. Insulated test pin sleeves also prevent short-circuits.
Better contact test leads with 15 mm gold-plated tip pin
• Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
• Full auto-ranging function and automatic power saving function
• Overload protection to 500 V at resistance or continuity functions
■ Basic specifications (Accuracy guaranteed for 1 year)
Regarding DMM Accuracy
Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.
DC Voltage | 419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt. |
---|---|
AC Voltage 50 to 500 Hz | 4.199 V to 500 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (Average rectified) |
Resistance | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. |
Continuity Buzzer | Detection level 50 Ω ±40 Ω, Diode check: Not available |
Auto power save | Available (cancel selectable) |
Display | Digital LCD, max. 4199 digits |
Sampling rate | 2.5 times/sec |
Power supply | Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours |
Dimensions and mass | 55 mm (2.17 in) W × 109 mm (4.29 in) H × 9.5 mm (0.37 in) D, 60 g (2.1 oz) |
Accessories | Instruction manual ×1, Carrying case ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1) |
