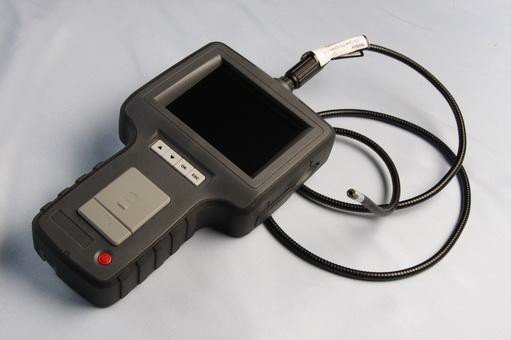

CLASS 1-CIA351B-ULTRA-CLEAR 2M 6.0MM SUPER RESOLUTION TWO-WAY ROTATION INSPECTION CAMERA/VIDEOSCOPE-USA {youtube}OTKmi7kjngI{/youtube}
- 3.5 TFT LCD
- 3.5 " Extra-wide view angle and clear TFT LCD, protected by oil and scratch resistant glass.
- Snap shot and video recording
- Snap still images(640x480)
- Records QVGA resolution (320x240) videos.
- Instant playback review.
- SD Card Storage (Max: 32GB)

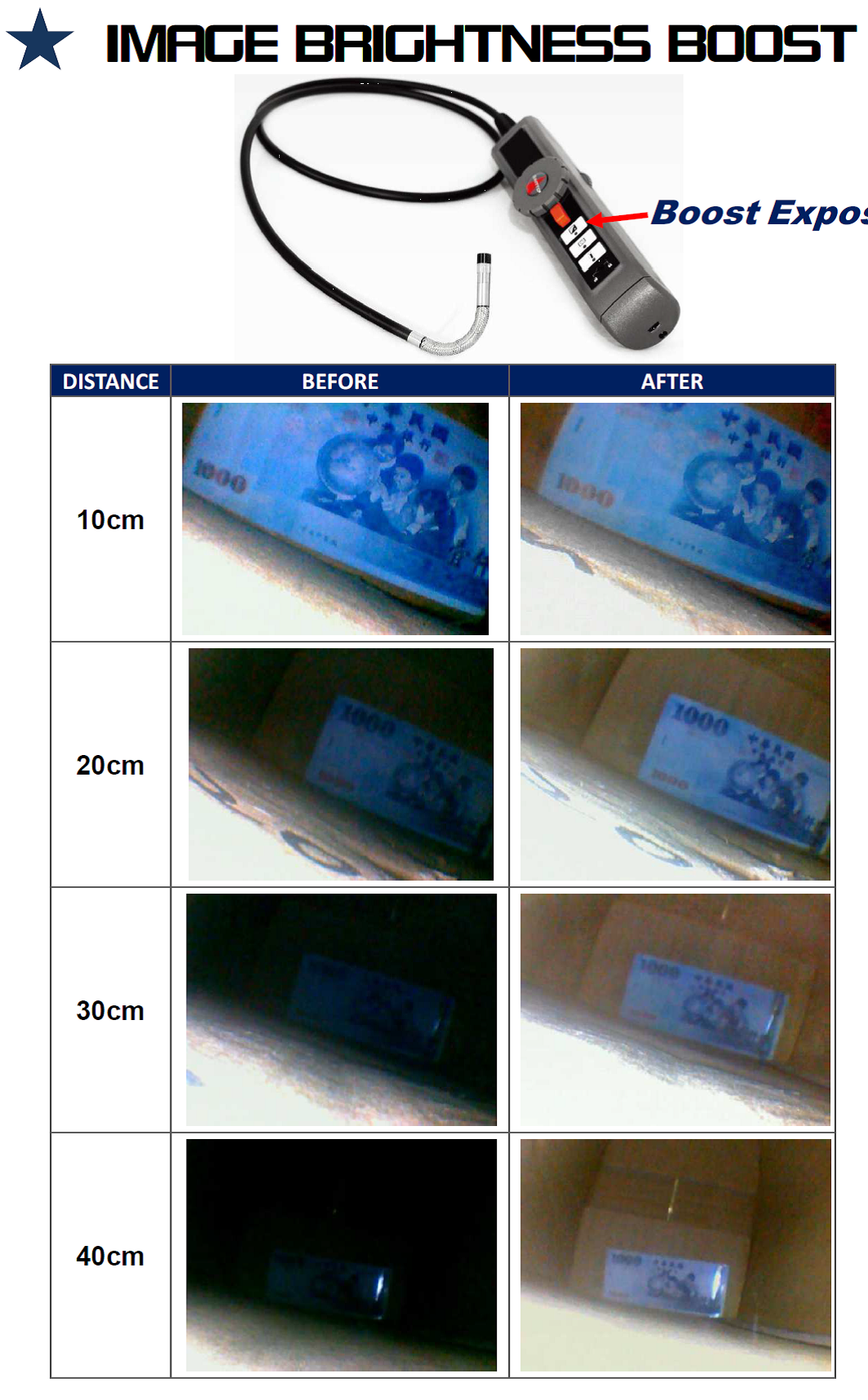

- LED brightness adjustment
- High brightness white LED with intensity adjustment.
- AV out
- Support live image on TV monitor.
- Zoom in and mirror
- 2X Digital Zoom and horizontal mirror image adjustment.
- Long duty hour
- Rechargeable internal Li-Polymer battery lasts for four hours.
- Insert Tube options
- **SPECIAL DESIGNED AND PRODUCED BY OUR USA Partner-*SCOPE RESEARCH CORPORATION (California, USA)*.

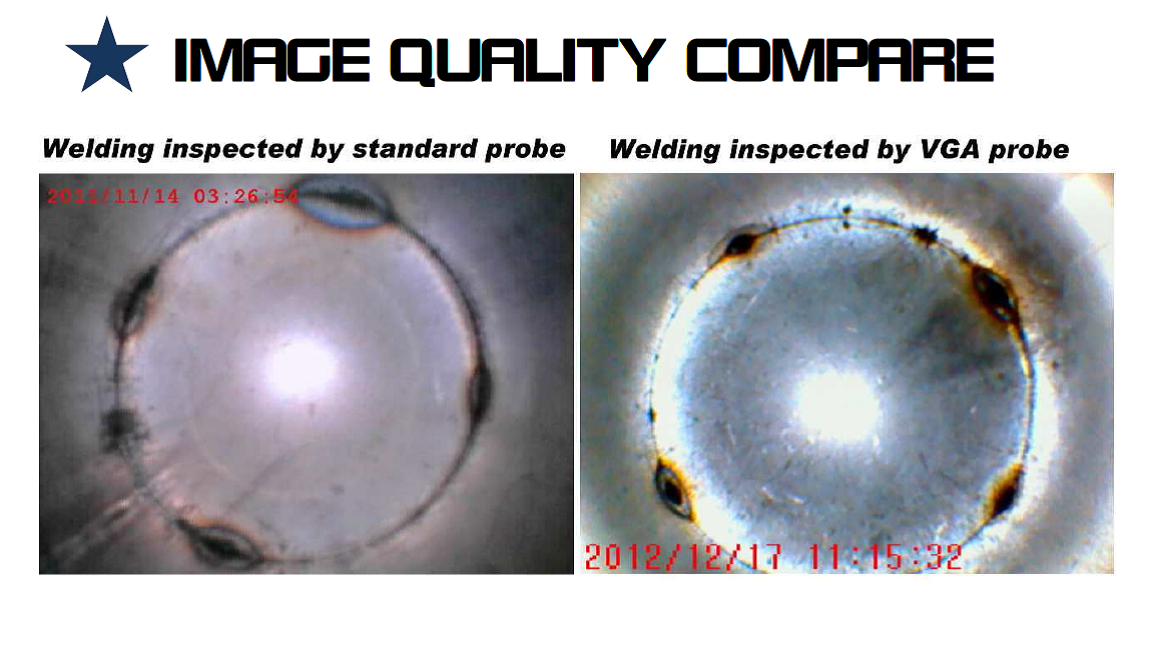

VGA Resolution, Function Upgrade Probes: Φ6.0mm,
|
Automobiles (check of and repair of cylinders, mufflers, transmissions, linings, manifolds, frames, etc. ) |
|
Aircrafts (Inspection and repair of engines, shafts, landing gears, turbines, etc.) |
|
Ships (Inspection and repair engines, turbines, heat exchangers, pipe lines, etc.) |
|
Railways (Inspection and repair for engine maintenance, power maintenance, electric maintenance, etc.) |
|
Mechanical equipment (internal check of pipes, tanks, steel pipes, tubes, etc.) |
|
Generators (Inspection for cracks on and abrasion of mechanical equipment, boilers, turbines, hydraulic pipes, etc.) |
|
Welding (Inspection of welding on pipes, tanks, steel pipes, tubes, etc.) |
|
General equipment (Internal check of various pipes) |
|
Gas, petroleum, and chemicals (Internal Inspection of gas pipes, oil pipes, heat exchangers, etc.) |
|
Electricity (Internal Inspection and diagnosis of power distributors, transformers, power equipment, etc.) |
|
Manufacture (quality check of engine blocks, containers, LCDs, etc.) |
|
Defense, security, and surveilliance (military, customs, police , firefighting, security companies) |
|
Architecture (Construction engineering, upholstery, house repair, plumbing, ventilation, air condition, etc.) |
|
Exploration, education, and research and experiments. |
Specification:
Feature Function
|
Easy Operate |
|
Quick Snap (JPEG) |
|
Quick Video Record (MPEG4/ASF) |
|
Quick Video/Picture Review |
|
1X / 2X Magnification |
|
Mirror Image Supported |
|
AV OUT |
Insertion Tube & Camera System
|
Image Sensor |
CMOS Image Sensor |
|
Resolution (Dynamic/Static) |
- |
|
640(H)*480(V) / 640(H)*480(V) , VGA probe only |
|
|
Tip (Insertion Tube) Diameter |

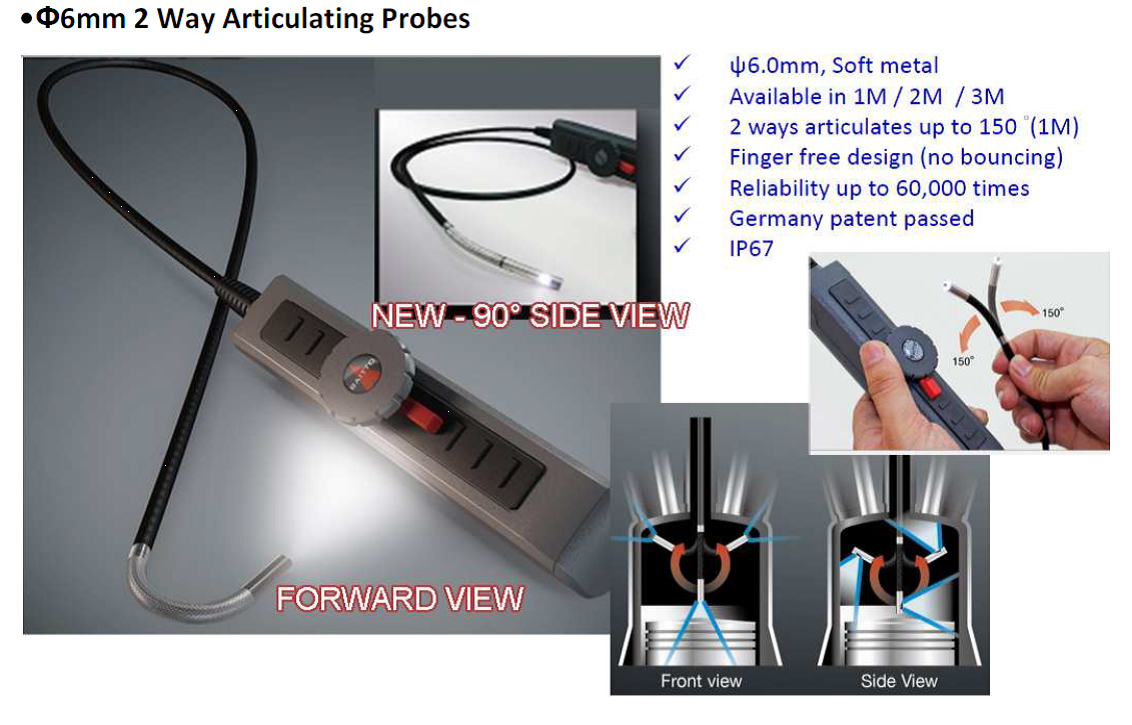

Φ6mm 2 way articulating probe for |
|
Length of Insertion Tube |
2m |
|
Housing |
Stainless Steel |
|
Material of Tube Connector |
Military-standard Metal |
|
Type of Insertion Tube |
Semi-Rigid or Soft-Metal |
|
Forward/Side View Quick Switch |
Yes |
|
Field of View (F.O.V.) |
Horizontal:46°, Vertical:34°, Diagonal: 87.1° |
|
Depth of Field (D.O.F.) |
1cm~10cm |
|
Light Source |
4 White LED, Brightness adjustable |
|
Working Temperature |
0°C~80°C |
|
Water and Oil Resistant |
Insertion tube is water and oil resistant (IP67 standard) |
|
Operating Hours |
4 hours after being charged for 2 hours |
|
Optional Accessories |
Magnet, Hook, Climbing ball |
Main Console System(Screen)
|
System Dimension |
117.5*207*37mm |
|
Power |
Battery rechargeable Li-Polymer battery 3.7V |
|
4 AA Batteries |
|
|
Display |
3.5"TFT LCD QGVA |
|
Interface |
USB 2.0/ AV Out |
|
Video Out Format |
NTSC & PAL |
|
Recording Medium |
4GB SD Memory Card |
|
Compression Format |
MPEG4 |
|
Still Image Storage Format |
JPEG (640*480) |
|
Video Recording Format |
AVI 320*240 |
|
Water and Dust Proof |
IP55 Water and Dust Protection |
|
Frame Rate |
~30 fps |
|
S/N Ratio |
42dB or more |
|
Exposure |
Automatic |
|
White balance |
Fix |
|
Language |
27 Languages: English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian / Bulgarian / Turkish / Swedish / Finnish / Norwegian / Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek |
|
Certificate |
CE, FCC, ROHS |
|
Package Size & Weight |
L55*W9.5*H32CM, NW:2.8KGS, GW:3.2KGS |
|
OPTIONAL ITEMS: |
||
|
CIA351X3 |
Carrier Bag - Sunshade. Protection. Easy Carry. |
|
|
CIA351X1 |
HOLDING TUBE 990 DIAMETER: 8MM FOR HOLDING 6MM PROBE |
