Specification

Pipe Diameter

Ø 6mm

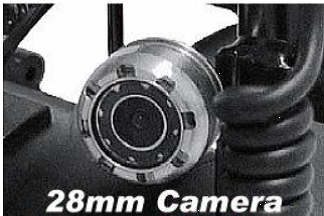

Camera Diameter

-

Ø 28mm

Applicable Pipe

-

40mm-100mm

Goose neck

27cm

Pipe Length

22m

Resolution

640*480

Camera Material

Stainless steel

Depth of Field

-

10mm -∞

Field of View

-

150.8°(Diagonal)

Illumination

High Brightness 8 White Led (3000 lux)

Waterproof

Probe-IP68 Reel-IP65

Working Temp.

-10°C~60°C

Operating Hour

3 Hours

Material

Fiber Glass

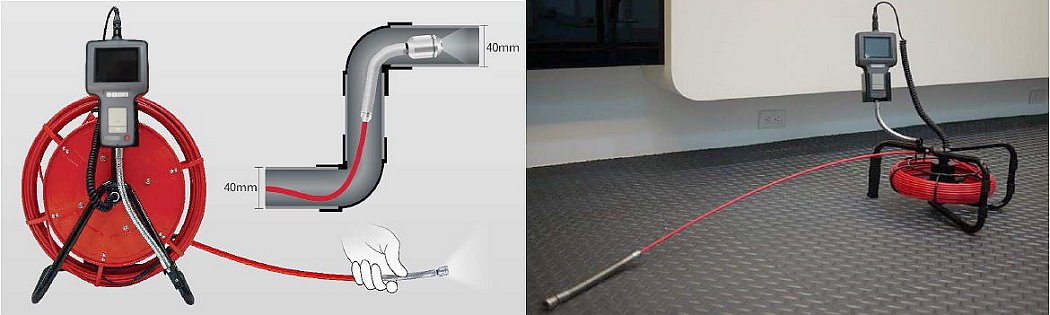

Flexibility

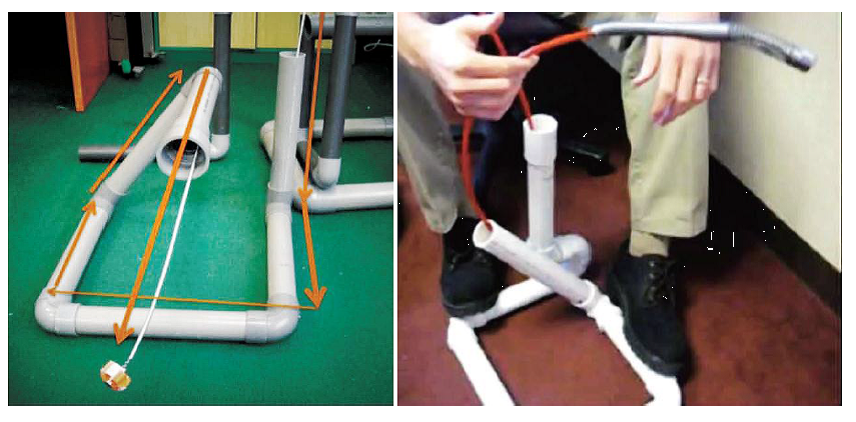

Continuously 90° sharp turn in Ø40mm Water Pipe

Whole Reel Diameter

30cm

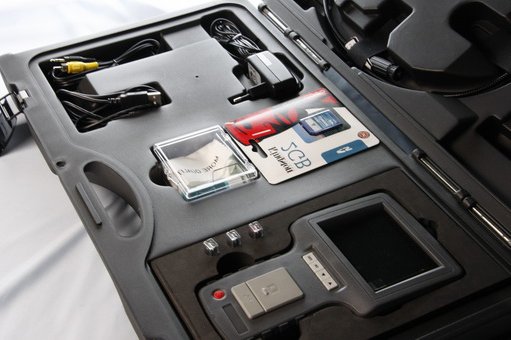

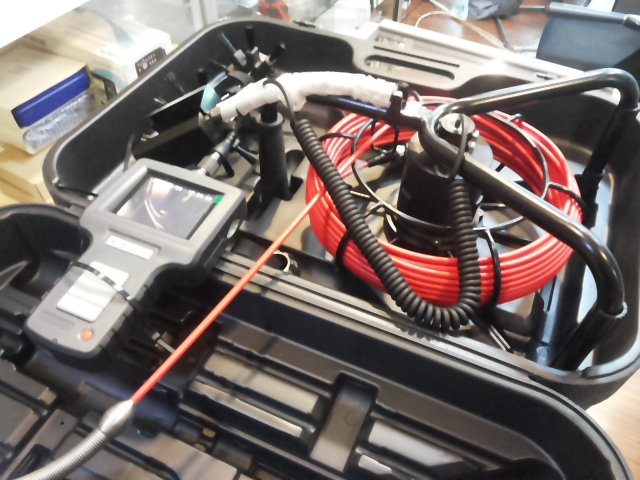

Case

Portable Blow Molded Case

Package

Standard Carton Package 5KG/ 38.5*26*44 (cm)

Option Portable Case Package 12KG/ 64*29*46(cm)

Standard Accessories

Centering Brush, Diameter: Φ100mm, L:150mm

Optional Accessories

Pipe Meter

Centering Metal Ring, Diameter: Φ50mm, L:36mm

Centering Brush, Diameter:Φ150mm, L:150mm

Centering Rover, Diameter:Φ150mm~Φ300mm

Automobiles (check of and repair of cylinders, mufflers, transmissions, linings, manifolds, frames, etc. )

Aircrafts (Inspection and repair of engines, shafts, landing gears, turbines, etc.)

Ships (Inspection and repair engines, turbines, heat exchangers, pipe lines, etc.)

Railways (Inspection and repair for engine maintenance, power maintenance, electric maintenance, etc.)

Mechanical equipment (internal check of pipes, tanks, steel pipes, tubes, etc.)

Generators (Inspection for cracks on and abrasion of mechanical equipment, boilers, turbines, hydraulic pipes, etc.)

Welding (Inspection of welding on pipes, tanks, steel pipes, tubes, etc.)

General equipment (Internal check of various pipes)

Gas, petroleum, and chemicals (Internal Inspection of gas pipes, oil pipes, heat exchangers, etc.)

Electricity (Internal Inspection and diagnosis of power distributors, transformers, power equipment, etc.)

Manufacture (quality check of engine blocks, containers, LCDs, etc.)

Defense, security, and surveilliance (military, customs, police , firefighting, security companies)

Architecture (Construction engineering, upholstery, house repair, plumbing, ventilation, air condition, etc.)

Exploration, education, and research and experiments.

Easy Operate

Quick Snap (JPEG)

Quick Video Record (MPEG4/ASF)

Quick Video/Picture Review

1X / 2X Magnification

Mirror Image Supported

AV OUT

Image Sensor

CMOS Image Sensor

Resolution (Dynamic/Static)

-

640(H)*480(V) / 640(H)*480(V) , VGA probe only

Tip (Insertion Tube) Diameter

Φ28mm

Length of Insertion Tube

22m

Housing

Stainless Steel

Material of Tube Connector

Military-standard Metal

Type of Insertion Tube

Semi-Rigid or Soft-Metal

Forward/Side View Quick Switch

Yes

Field of View (F.O.V.)

Horizontal:46°, Vertical:34°, Diagonal: 150°

Depth of Field (D.O.F.)

1cm~*

Light Source

4 White LED, Brightness adjustable

Working Temperature

0°C~80°C

Water and Oil Resistant

Insertion tube is water and oil resistant (IP67 standard)

Operating Hours

4 hours after being charged for 2 hours

Optional Accessories

Magnet, Hook, Climbing ball

System Dimension

117.5*207*37mm

Power

Battery rechargeable Li-Polymer battery 3.7V
Power supply AC100-240V 50-60Hz Power consumption DC5.5 1.8A

4 AA Batteries

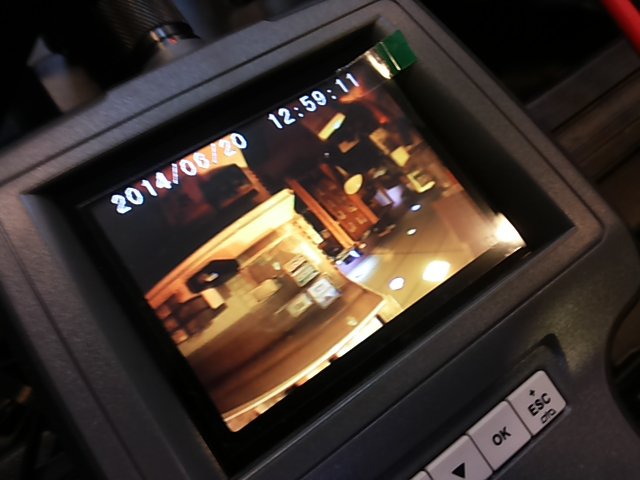

Display

3.5"TFT LCD QGVA

Interface

USB 2.0/ AV Out

Video Out Format

NTSC & PAL

Recording Medium

4GB SD Memory Card

Compression Format

MPEG4

Still Image Storage Format

JPEG (640*480)

Video Recording Format

AVI 320*240

Water and Dust Proof

IP55 Water and Dust Protection

Frame Rate

~30 fps

S/N Ratio

42dB or more

Exposure

Automatic

White balance

Fix

Language

27 Languages: English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian / Bulgarian / Turkish / Swedish / Finnish / Norwegian /  Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek

Certificate

CE, FCC, ROHS

Package Size & Weight
(ABS portable case with outer gift carton)

L55*W9.5*H32CM, NW:2.8KGS, GW:3.2KGS
