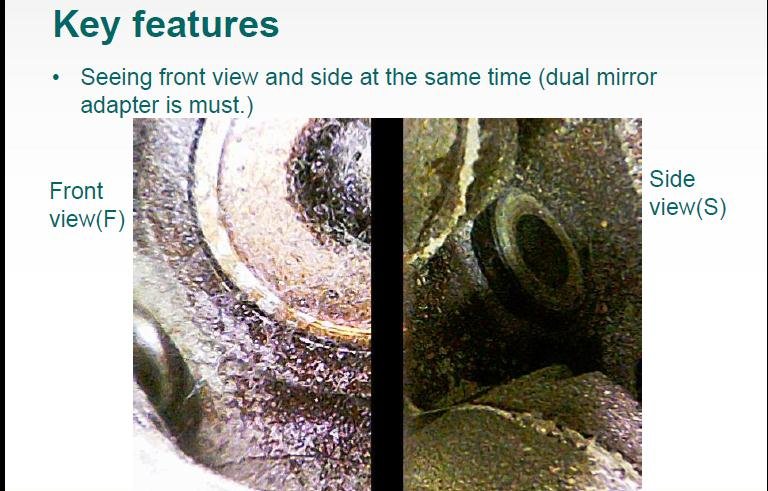

Measure: *Simultaneous both front and side viewing. Snap + Record what you see on screen. Skype viewing. Compare old and current pictures. Addition of notes to the saved pictures.
|
Product Description
|
•
|
7" TFT LCD
|
| |
Our new generation 7" videoscope, protected by oil and scratch resistant tempered glass
|
| |
|
|
•
|
Superior image quality
|
| |
Sharp, Clear and Bright
|
| |
|
|
•
|
Rugged and robust
|
| |
1m drop resistence, IP57 protection(main system)
|
| |
|
|
•
|
Long duty hour
|
| |
Rechargeable Li-battery lasts for 6 hours
|
| |
|
|
•
|
SKYPE communication ready
|
| |
Real time data sharing and diagnosis
|
| |
|
|
•
|
LED backlight function keys
|
| |
Great for dark environment without sunlight or other light sources
|
| |
|
|
•
|
USB camera
|
| |
Support webcam device to remote access for data sharing and real-time diagnose
|
| |
|
|
•
|
USB reader
|
| |
Simply conncet to your PC to retrieve your data from the SD card, card reader is not necessary
|
| |
|
|
•
|
3 easy ways to capture pictures
|
| |
-button on the system
-articulation probe
-remote control
|
| |
|
|
•
|
Neck/hand strap
|
| |
convienent and great for operation
|
| |
|
|
•
|
Light weight
|
| |
only 1.3kg
|
|

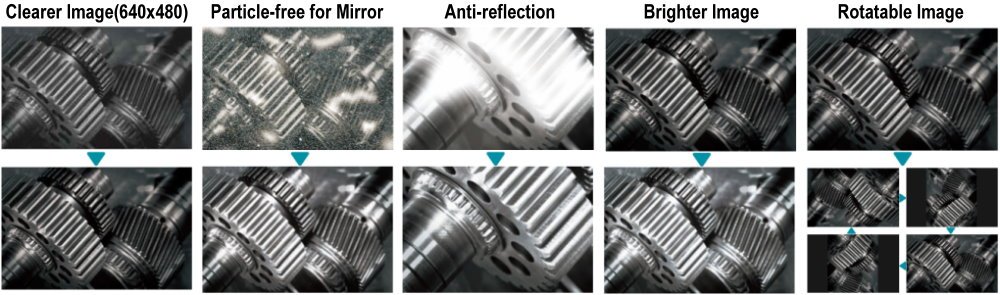

Our outstanding image processing technology implementation to sharpen the edges and optimize the image quality for best inspection result
8 levels of light adjustments to different inspection conditions, the 5 basic levels works for most inspections; 3 advanced levels will expand the exposure time for extremely dark environment
|
System specifications:
|
| |
System dimension
|
|
240x154x47 mm
|
|
| |
System weight
|
|
1.3kg (2.86lb)
|
|
| |
Power
|
|
Rechargeable Li-battery lasts for 6 hours/3 hours charge to full
|
|
| |
Recording medium
|
|
SD card, up to 32G
|
|
| |
Audio input/output
|
|
Built-in microphone/Headphone jack
|
|
| |
Working temperature
|
|
0ºC~60 ºC
|
|
| |
Storage temperature
|
|
0ºC~60ºC
|
|
| |
Charging temperature
|
|
10ºC~40 ºC
|
|
| |
Relative humidity
|
|
95% max, non condensing
|
|
|
|
Two way articulation tube:
|
| |
Probe head diameter
|
|
6.0mm
|
|
| |
Buttons
|
|
snapshot / LED+/ LED-
|
|
| |
Button lock
|
|
lock up buttons functions
|
|
|
AMG100+AMG100P1 ADVANCED VIDEOSCOPE-USA
