Product Description

• Auto Calibration to assure the accuracy
• Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
• Use ▲ and ▼ keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
• Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
• 10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
• Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
• 12 sound velocity for different material which also adjustable
• Low battery indication
• Auto power off mode designed to conserve battery life
• More than 10000 times long life keys

The unit has a special memory that retains all of its setting even when the power is off

• LCD Digital display: 4 digits
• Minimum display unit: 0.1mm
• Working frequency: 5MHz
• Measurement Range: 1.2~225.0mm (Steel)
• Minimum limit for Tubes measurement: ϕ20 x 3mm (Steel)
• Accuracy: ± (1% H + 0.1 mm) (H denotes the measured thickness)
• Sound Velocity Range: 1000~9999m/s
• Measuring Sound Velocity with a given thickness
  • Measuring Range: 1000~9999m/s
  • When the given thickness over 20mm, the accuracy is ±1%; when the given thickness less than 20mm, the accuracy is ±5%
• Operating Temperature: 0~40°C (32~104°F)
• Power supply: 3 x 1.5 AAA Alkaline Batteries (Included)
• Operation Current:
  • Normal Operation Current ≤50mA
  • With Backlight turn on current ≤120mA
  • Stand-by Current: ≤20 µA
• Size: approx. 72 x 146 x 29mm (2.83 x 5.75 x 1.14inch)
• Weight: approx. 202g (7.12oz) (Batteries and probe included)

One Set Includes:

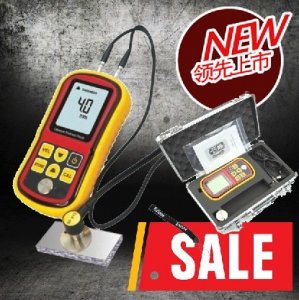

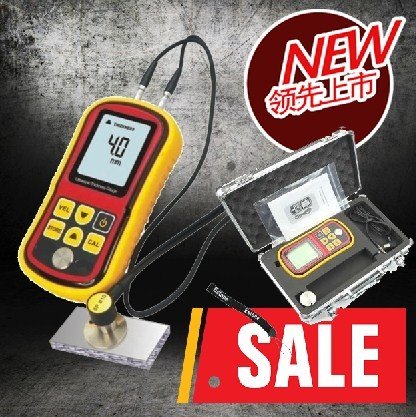

• 1 x Ultrasonic Thickness Meter
• 1 x 10mm, 5MHz Transducer
• 1 x 4mm Sample Block
• 1 x 50ml Bottle of Coupling Agent
• 1 x Operating Manual
• 3 x AAA Alkaline Batteries
• Standard Factory Package
