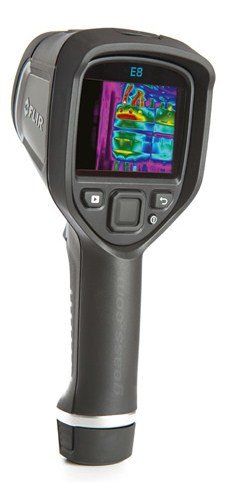

FLIR® Ex-Series Infrared Camera Specifications
Model Number | FLIR E4 | FLIR E5 | FLIR E6 | FLIR E8 |
|
|
|
|
|
Imaging and Optical Data |
IR Resolution |
80 × 60 |
120 × 90 |
160 × 120 |
320 × 240 |

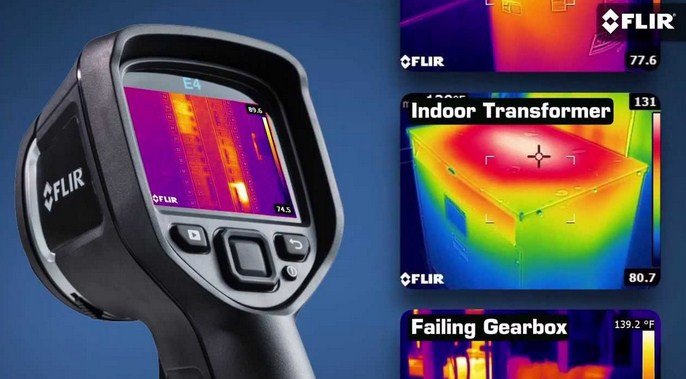

Thermal Image Sample |
|
|
|
|
MSX Resolution |
320 × 240 |
Thermal Sensitivity |
<0.15°C |
<0.10°C |
<0.06°C
|
Field of View |
45° × 34° |
Focus |
Focus Free |
Detector |
Uncooled Microbolometer |
Screen |
3.0 in. 320 × 240 color LCD |
Frame Rate |
9 Hz |
Analysis |
Image Modes |
IR image, visual image, MSX, thumbnail gallery |
IR image, visual image, MSX, picture-in-picture, thumbnail gallery |
Multi Spectral Dynamic Imaging (MSX) |
IR image with enhanced detail presentation |
Picture-in-Picture |
N/A |
IR area on visual image |
Temperature Range |
–4° F to 482°F (–20° to 250°C) |
Accuracy |
±2% or 2°C |
Measurement Modes |
Spot (center) mode
|
2 modes: 1 Spot (center); 1 Area Box (Min/Max)
|
3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below) |
Alarm |
N/A |
N/A |
Blue below or red above set temperature |
Emissivity Correction |
Variable from 0.1 to 1.0 |
Set-Up |
Color Palettes |
Iron, Rainbow, and Gray |
Set-up Commands |
Local adaptation of units, language, date and time formats |
Image Storage |
Storage Capacity |
Internal memory store at least 500 sets of images |
Storage Mode |
Simultaneous storage of images in IR, visual and MSX |
File Formats |
Standard JPEG, 14-bit measurement data included |
Other |
Battery Type / Op Time |
~4 hours |
Dimensions / Weight |
/ 1.27 lbs (0.575 kg) |
Drop |
2 meter / 6.6 ft |
Warranty |
FLIR Warranty: Learn More |
Image Resolution Comparison: FLIR® Ex-Series Infrared Cameras
Not sure which FLIR Ex-Series camera is right for you? Compare resolution to find the best fit for your application.
FLIR E4 80 × 60 Resolution
FLIR E5 120 × 90 Resolution
FLIR E6 160 × 120 Resolution
FLIR E8 320 × 240 Resolution
Zoomed in on hot area
FLIR E4 80 × 60 Resolution
FLIR E5 120 × 90 Resolution
FLIR E6 160 × 120 Resolution
FLIR E8 320 × 240 Resolution
