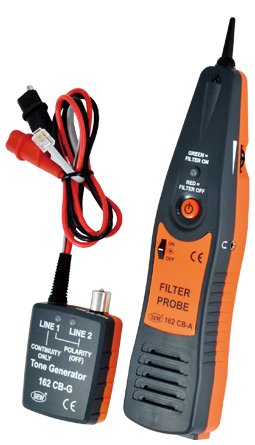

● Works with any Tone Generator to identify wires. ● Volume control for increasing sensitivity and adjustable to suit work environment. ● 2 operation modes: Filter on / Filter off. ● The auto-off function (5 minutes) prevents battery consumption. ● Power supply is available in any 9V battery with a life of approximately 50 hours. ● A phone jack is designed for headset or handset. ● Flashlight function. ToneGenerator ● Tone Generator is a great tool for locating and identifying cable pairs or individual conductors. ● 162 CB-G doesn't only provide the function of a tone generator, but also serves as a continuity and polarity tester. ● A tone selector switch located inside the unit for selection of the fast tone or the slow tone. ● Two bi-colored LEDs for Line1 and Line 2 indication
of the polarities of the telephone lines. ● The unit has alligator type terminals, a modular cable of 4 conductors with a strong connector. ● The tone and continuity functions are only applied to Line1. (Modular connector)
SPECIFICATIONS
Filter Probe
Operation mode
Filter on (avoid the interference of 50Hz/60Hz)
Filter off
Receiver distance
< 50cm
Sensitivity control
ˇ
Probe tip
Fixed
Power source
9V battery × 1
Dimensions
250(L) × 39(W) × 38(D)mm
Weight (battery included)
Approx. 180g
Tone Generator
Wave form
Square Wave
Frequency
1kHz±15%
Over voltage protection
80V DC
Alternating tone
Fast and Slow
Connection
RJ11 connector, alligator clip x 2, RJ45 connector (optional)
