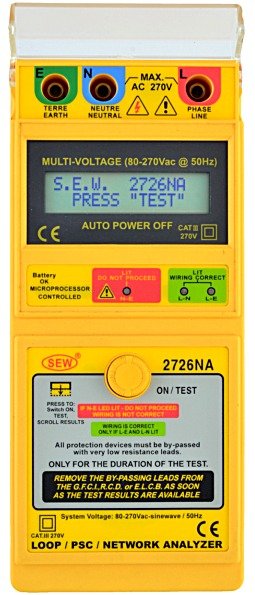

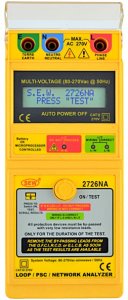

Sew 2726 NA

FEATURES

● Microprocessor-controlled.
● Built-in earth tester.
● Built-in loop/psc tester. 0.03-2000Ω (software ctrl).
● Built-in voltmeter.
● Built-in wiring checker.
● One push button smart control.
● Display L-N and L-E voltages. 50 to 280Vac (sine).
● Display line path impedance. 0.01-2000Ω (software ctrl).
● Display earth path impedance. 0.01-2000Ω (software ctrl).
● Display neutral path impedance. 0.01-2000Ω (software ctrl).
● Display psc line to neutral. 6kA@230Vac> supply.
● Display psc line to earth. 6kA@230Vac> supply.
● Re-scroll through previous results.
● Bat. ok/low battery indicator.
● Auto-off function.
● Color coded test leads.
● Rugged Case.
● Ultra low power consumption.

SPECIFICATIONS

Loop / Earth / Wires	0.03-2000Ω (auto-ranging)
Prospective short circuit	0~6kA at 230Vac
Operating voltage	50V~275Vac (50Hz)
Best performance at rated voltage	230Vac ± 20V Max.10A
Accuracy of voltage	±1%(210~250V) ±3% otherwise
Accuracy of loops / earth	±2% (0.05~50Ω)
Accuracy of wires impedances	±15% (above 500Ω)
Operating-temperature -humidity	0°C to 40°C 80% Maximum
Dimensions	205(L) × 90(W) × 55(D)mm
Weight (battery included)	Approx. 570g
Power source	1.5V (AA) × 6
Safety standard	EN 61010-1 CAT IV 300V EN 61326-1
